セルフオーダーメニュー(PSMenu)は無料でお使い頂けます(android端末、windowsPC、無線LANルータは各自調達下さい)
月額使用料等もなく、広告もなく、インターネット環境も必要ありません
使用して気に入って頂けたなら、ステッカーを購入し店頭に貼付して頂ければありがたいです
You can use the self-order menu (PSMenu) for free (Please procure your own android terminal and windows PC and wireless router)
No monthly fees, no ads, no internet required
If you like it after using it, I would appreciate it if you could buy a sticker and put it on the store
下記手順にてセルフオーダーメニュー(PSMenu)の機能を確認頂けます、問合せにつきましてはメール(psmenu06@gmail.com)にてお願い致します
You can check the functions of the self order menu (PSMenu) by following the steps below. For inquiries, please email (psmenu06@gmail.com)
★★★ windows端末にてココをクリックしダウンロード後、解凍下さい。★★★
### Click here on your windows terminal to download and unzip the file. ###
(1) windowsPCの環境を設定する
(1) Setting up the windows PC environment
1 |
このホームページより'PSMServer.zip'をダウンロードし解凍する(配置するフォルダは自由に設定可能です)
Download 'PSMServer.zip' from this homepage and unzip it (you can freely set the folder where it is placed)
|
|
---|---|---|
2 |
Add JAVA_HOME to system environment variables |
(2) 無線LANルータを設定する
(2) Wireless LAN router settings
1 |
無線LANルータをルータモード又はアクセスポイントモードで起動する start your wireless LAN router in router mode or access point mode |
---|---|
(3) windowsPCの環境を設定する
(3) Setting up the windows PC environment
1 |
windowsPCを無線LANルータに接続する Connect windows PC to wireless LAN router |
|
---|---|---|
2 |
windowsPCでコマンドプロンプトを起動、'ipconfig'コマンドにてIPv4アドレスを確認する
Start a command prompt on your windows PC and check the IPv4 address using the 'ipconfig' command
|
|
3 |
windowsPCのIPを固定する(例:192.168.111.10)
Fix the IP of your windows PC (e.g. 192.168.111.10)
|
|
4 |
無線LANルータのプロパティ設定
Wireless LAN router property settings
|
|
5 |
固定IPを「PSMServer/PSM」フォルダの'SETTING.xml'に記述する
Set the fixed IP in "SETTING.xml" of the 'PSMServer/PSM' folder
|
(4) android端末にて操作する
(4) Operate on android terminal
1 |
Google Playより'PSMenu'をインストールする Install 'PSMenu' from Google Play |
---|---|
2 |
'PSMenu'を起動する Press "start" and check the operation(There are 3 types of samples) |
3 |
'START'ボタンを押して動作確認下さい(3種類のサンプルがあります)
Press 'START' button and check the operation(There are 3 types of samples)
|
(5) windowsPCにて操作する
(5) Operate on windowsPC
1 |
windowsアプリ('psMxml.exe'及び'psOrder.exe')の言語を設定する
Set the language of windows apps ('psMxml.exe' and 'psOrder.exe')
|
|
---|---|---|
2 |
'PSMenu'androidアプリのラベル及びボタン名の言語を設定する
Set the language of labels and button names for 'PSMenu' android app
|
|
3 |
android端末の解像度毎の領域、文字サイズ及び背景色を設定する(psMxml.exe)
Setting the area, font size, and background color for each resolution of the android device(psMxml.exe)
|
|
4 |
android端末の設置場所情報(席・部屋等)を設定する(psMxml.exe)
Setting the installation location information (seat, room, etc.) of the android device(psMxml.exe)
|
|
5 |
メニュー及び商品、写真、詳細情報、価格を設定する(psMxml.exe)
Set menus, products, photos, detailed information, and prices(psMxml.exe)
|
(6) android端末にて操作する
(6) Operate on android terminal
1 |
PSMenuアプリで、windowsPCの固定IP等を設定し、'DOWNLOAD'ボタンを押すとプログレスバーが表示され、(5)で設定した情報をwindowsPCより取り込む
Use the PSMenu app to set a fixed IP address for your Windows PC, press the 'DOWNLOAD' button, a progress bar will be displayed, and you can import the information set in (5) from your Windows PC
|
|
---|---|---|
2 |
形状(解像度)を選択する
Choose a shape(resolution)
|
|
3 |
言語を選択する Select language |
|
4 |
場所情報を選択する Select location information |
|
5 |
メニュー、商品、写真、詳細情報及び価格を確認する Check menu, products, photos, detailed information and prices |
|
6 |
注文の確定をする
Confirm the order
|
PSMenu |
android端末のメニュー画面、商品の注文を行う
Android device menu screen, ordering products.
|
---|---|
PSMServet.bat |
windowsで起動する常駐アプリ、android端末からの注文受付及び、構成フォルダのアップロードを行う
A resident application that starts on windows, accepts orders from android devices, and uploads configuration folders.
|
psMxml.exe |
android端末の解像度、背景色、場所及びメニュー情報等を編集するwindowsアプリ A windows application that edits android device resolution, background color, location, menu information, etc. |
psOrder.exe |
android端末より注文された商品の表示及び会計情報を管理するwindowsアプリ A windows application that manages the display of products ordered from an android terminal and accounting information. |

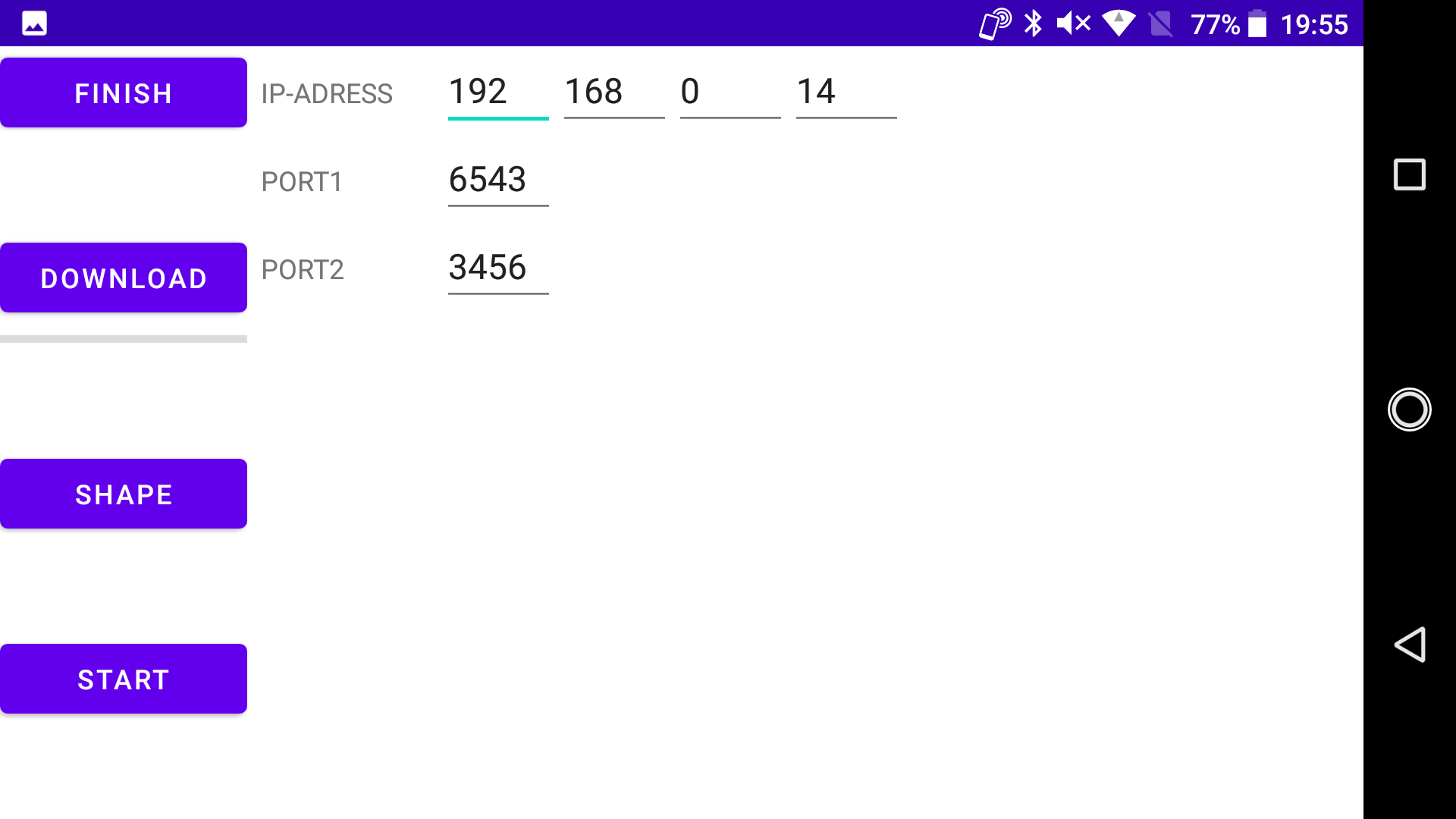

サーバ接続画面
Server connection screen
サーバアプリに接続し、「PSM」配下のフォルダをダウンロードします
Connect to the server app and download the folder under "PSM"

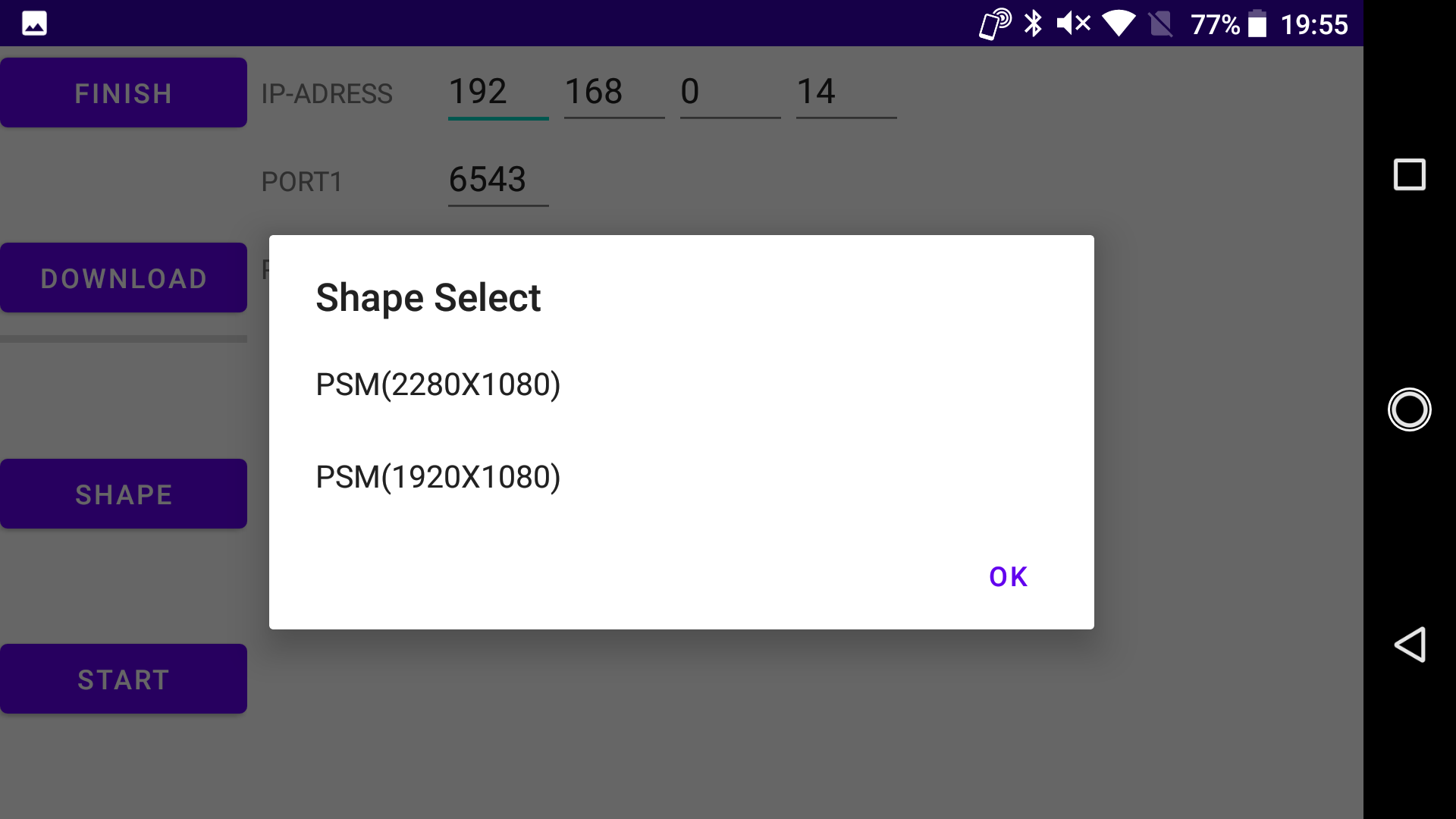

解像度の選択
Select resolution
端末の解像度を選択します、一覧にない場合、windowsアプリで生成し、ダウンロード後に選択して下さい
Select the resolution of the terminal, if it is not in the list, please generate it with the windows application and select it after downloading

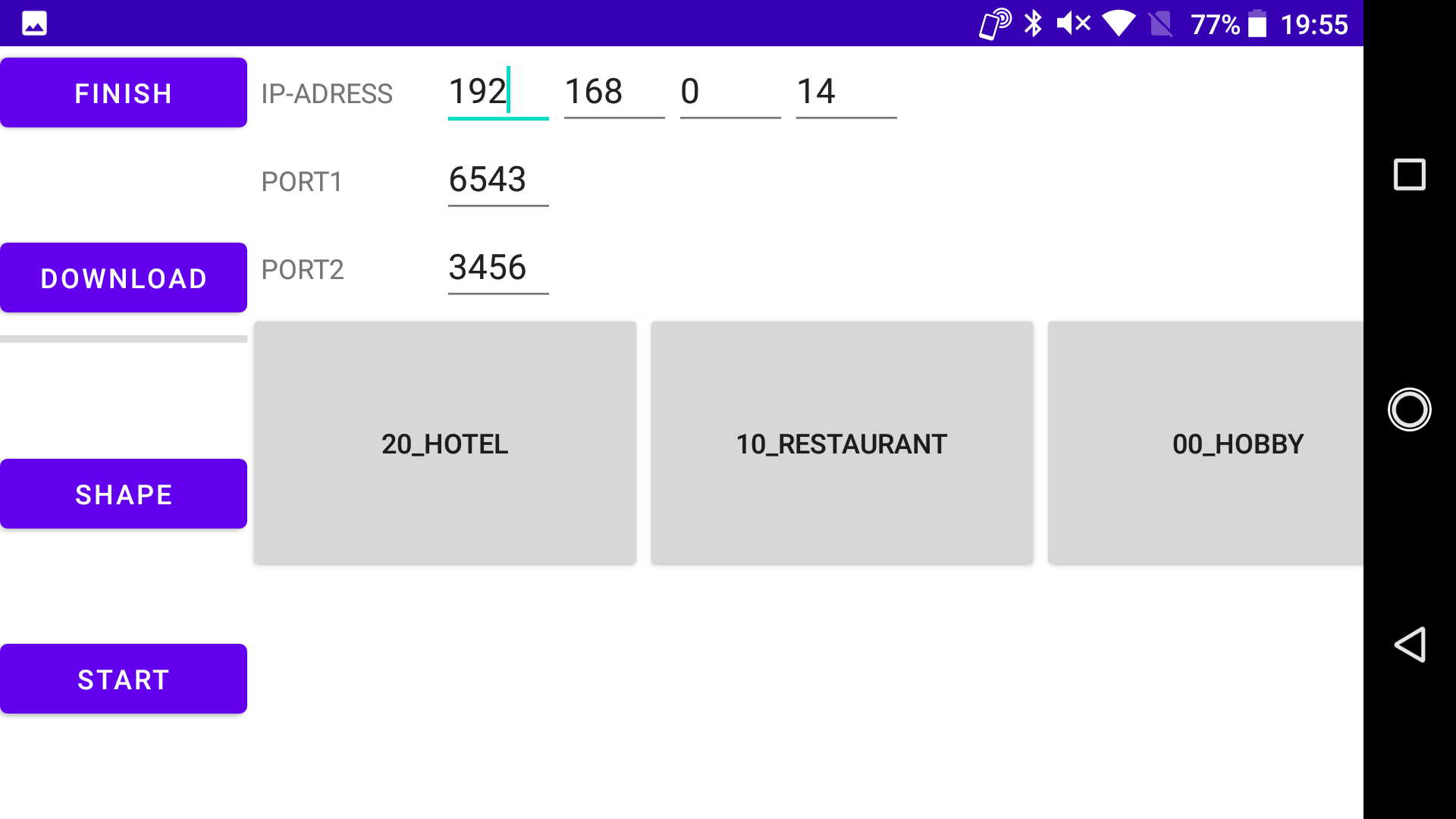

メニュー種類
Menu type
初動時ではサンプルが3種類入っております(趣味、飲食店、宿泊施設)
飲食店での使用の際は、趣味、宿泊施設等は必要ない為、windowsサーバの「./PSMServer/PSM/MENU/00_Hobby」及び「./PSMServer/PSM/MENU/20_Hotel」を削除する事でメニューに表示されなくなります
Three types of samples are included at the time of initial action (hobbies, restaurants, hotels)
Hobbies and hotels are not required for use in restaurants By deleting "./PSMServer/PSM/MENU/00_Hobby" and "./PSMServer/PSM/MENU/20_Hotel" on the windows server, it will not be displayed in the menu.

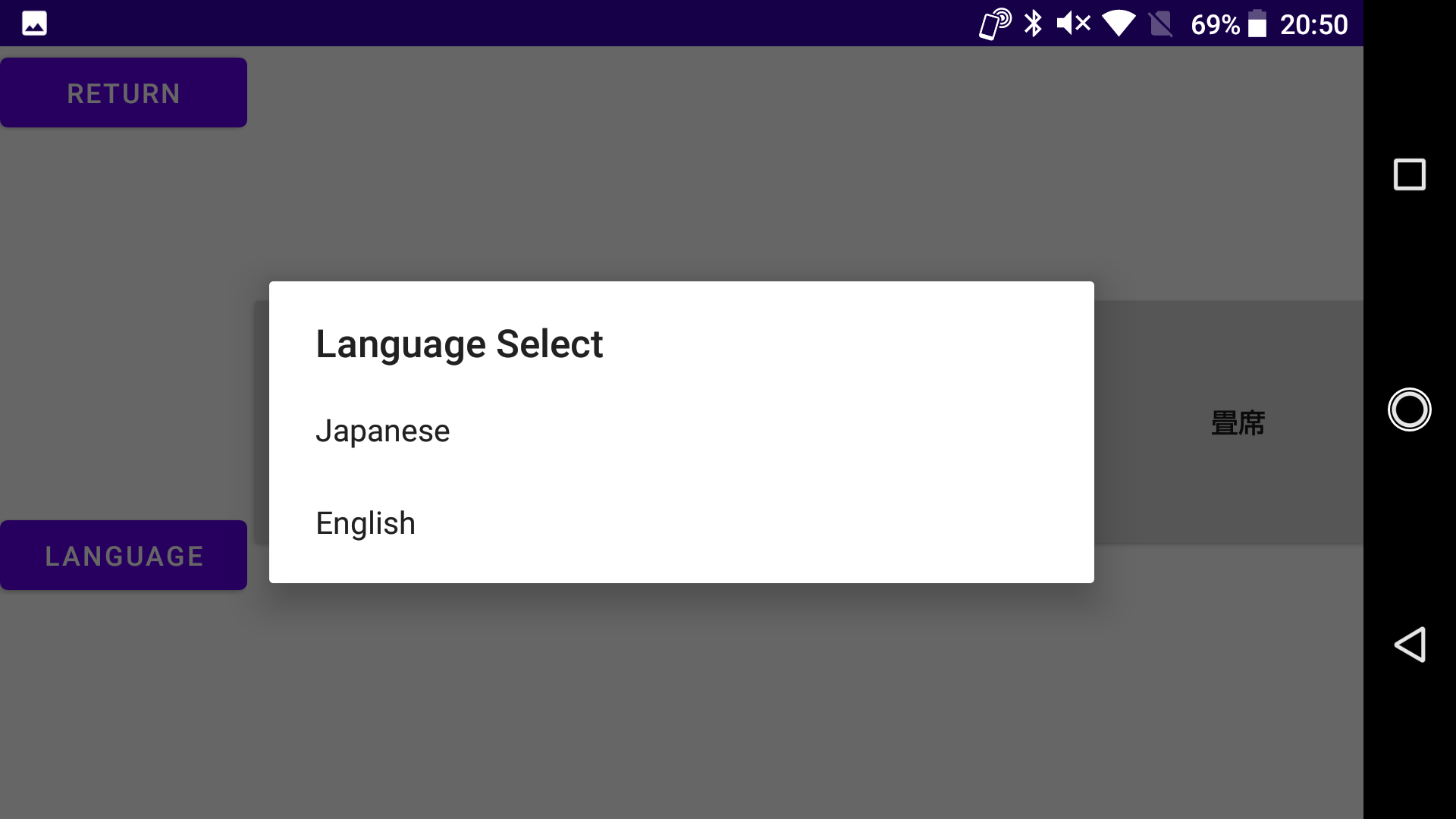

言語の選択
language selection
初動時でのサンプルは「日本語」、「英語」の選択ができる様になっております
「./PSMServer/PSM/LANG/English」及び「./PSMServer/PSM/LANG/Japanese」に言語フォルダが存在します
各々の「AITEM.xml」編集する仕組みとなっております
「./PSMServer/PSM/MENU/10_Restaurant/LANG/Japanese」及び「./PSMServer/PSM/MENU/10_Restaurant/LANG/English」フォルダは実際のメニュー構成となっております
各々の「CLASS.xml」及び「MENU.xml」を編集する事で異なった言語でメニューのタイトル、詳細情報、価格を編集する事が出来ます
You can select "Japanese" or "English" for the sample at the time of initial movement
There are language folders in "./PSMServer/PSM/LANG/English" and "./PSMServer/PSM/LANG/Japanese"
It is a mechanism to edit each "AITEM.xml"
"./PSMServer/PSM/MENU/10_Restaurant/LANG/Japanese" and "./PSMServer/PSM/MENU/10_Restaurant/LANG/English" folders are the actual menu structure
You can edit the menu title, details and price in different languages by editing the respective "CLASS.xml" and "MENU.xml"

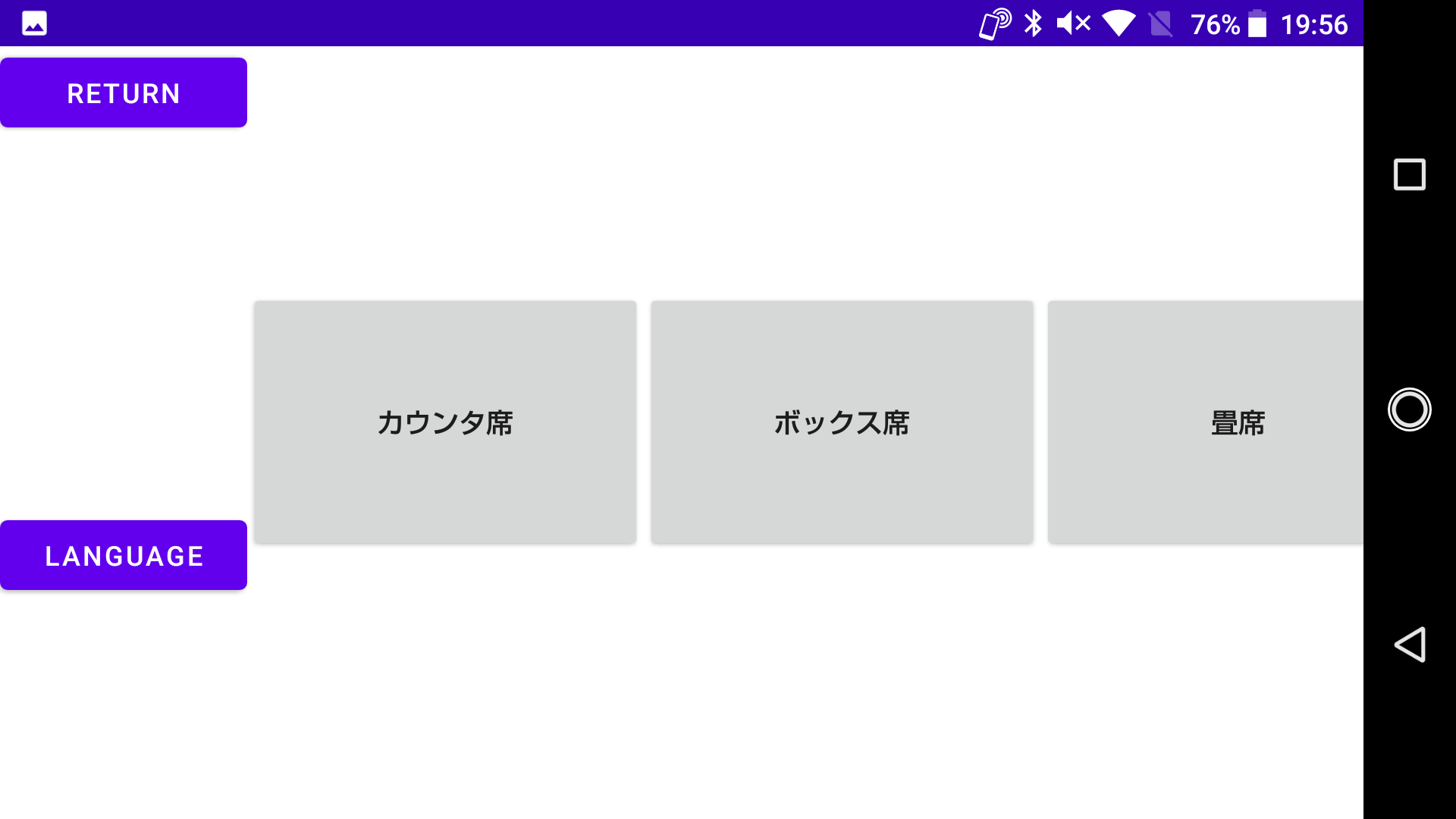

場所の種類を選択
Select location type
「./PSMServer/PSM/MENU/10_Restaurant/LANG/Japanese/CLASS.xml」より選択します
windowsアプリで場所の種類が作成可能となっております
Select from "./PSMServer/PSM/MENU/10_Restaurant/LANG/English/CLASS.xml"
It is possible to create the type of place in the windows application

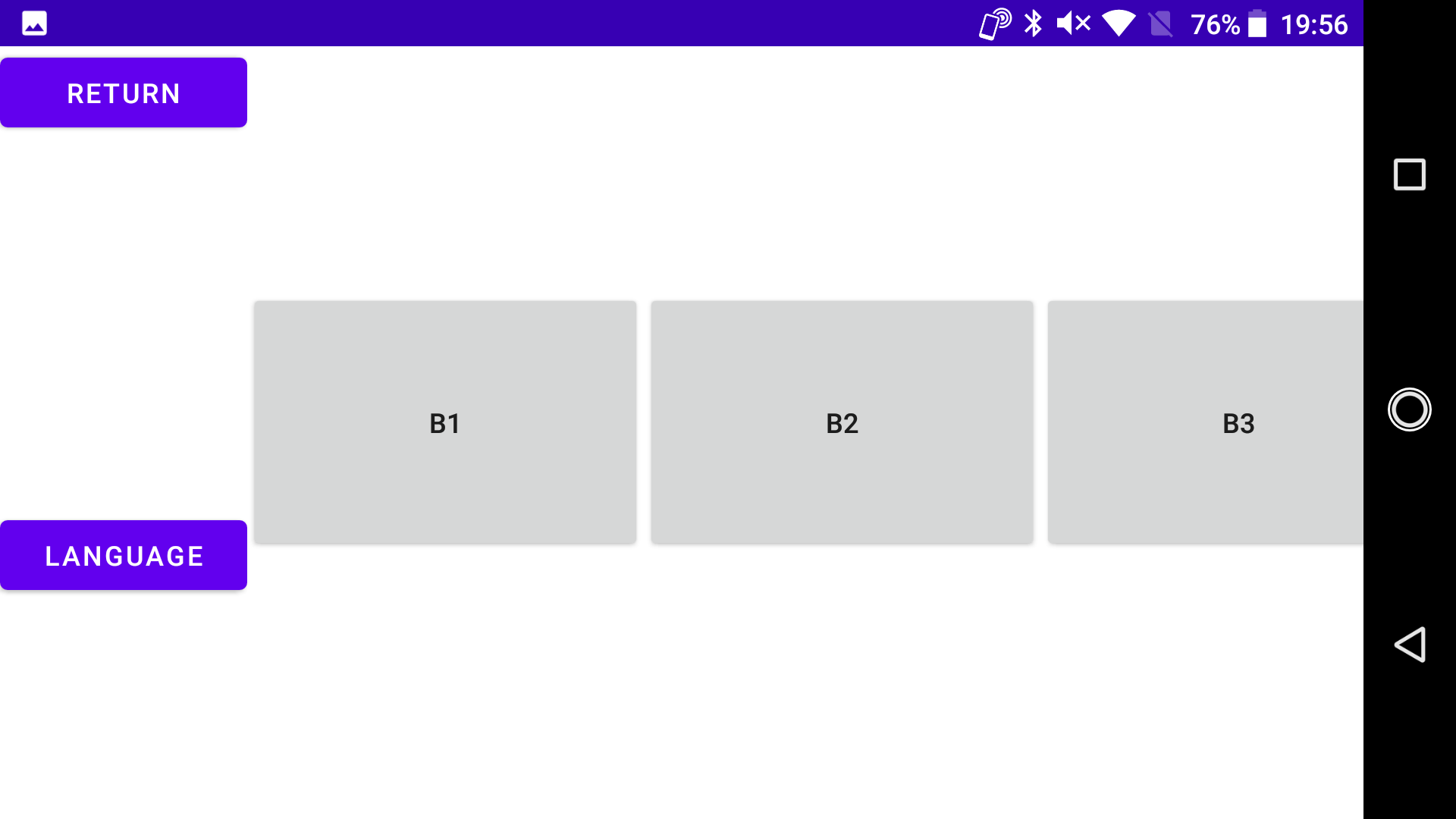

場所を選択
Select location
「./PSMServer/PSM/MENU/10_Restaurant/LANG/Japanese/CLASS.xml」より選択します
windowsアプリで場所の種類が作成可能となっております
Select from "./PSMServer/PSM/MENU/10_Restaurant/LANG/English/CLASS.xml"
It is possible to create the type of place in the windows application

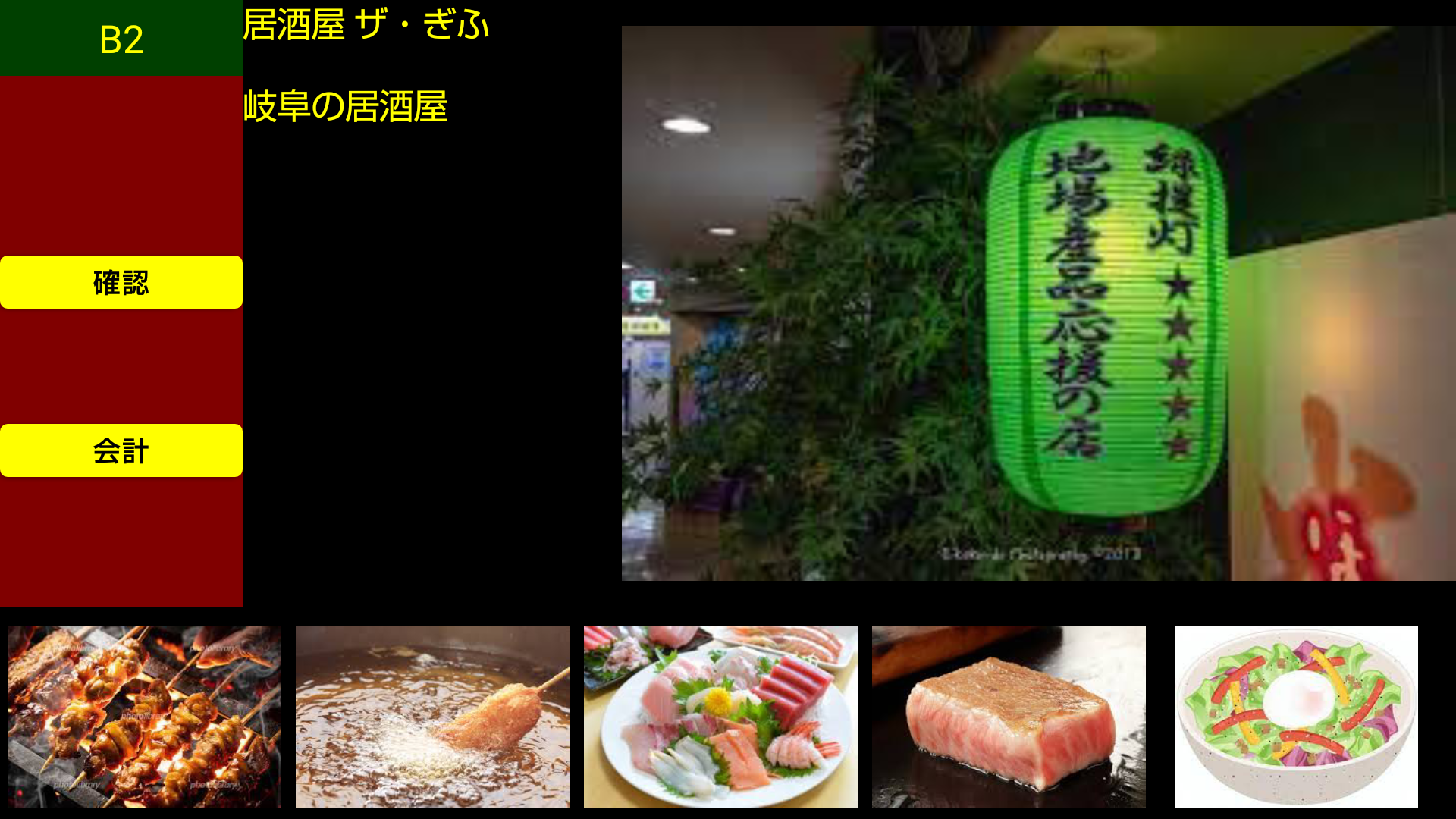

メニューを選択
Select menu
メニュー選択となります、下記領域をスライドさせてメニュー又は商品を選択下さい
It will be a menu selection, please select the menu or product by sliding the area below

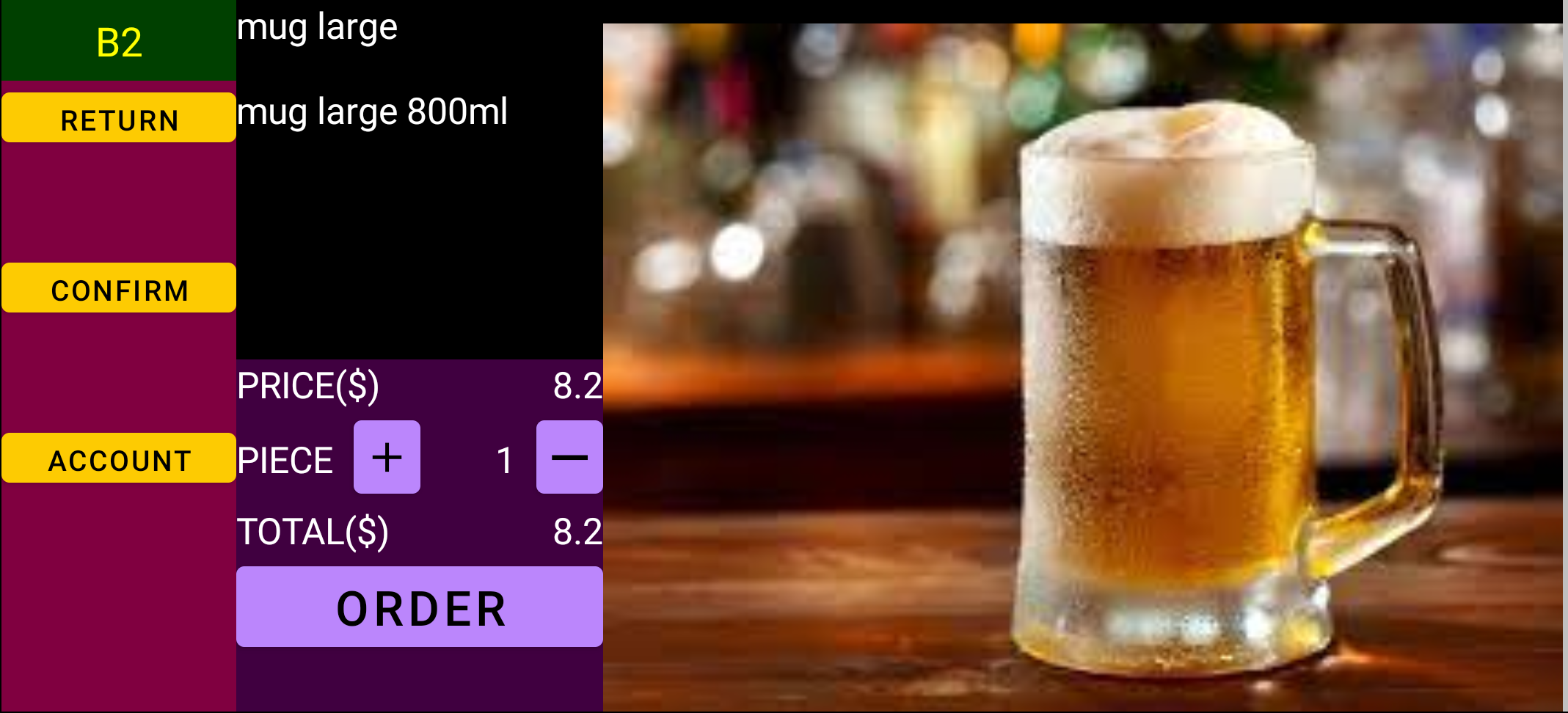

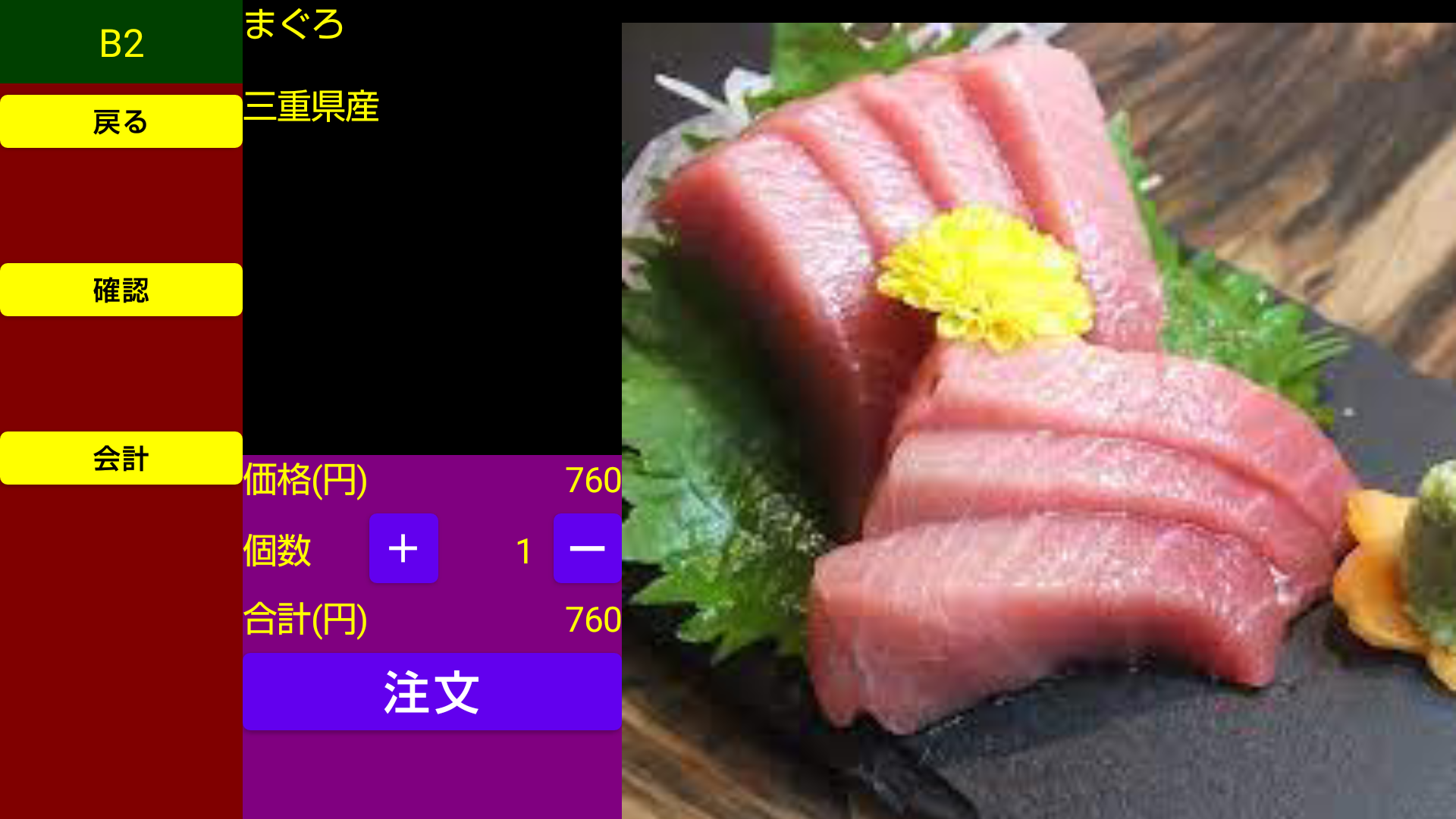

商品選択
Select product
商品の個数を入力し注文(仮確定)します
Enter the number of products and place an order (temporary confirmation)

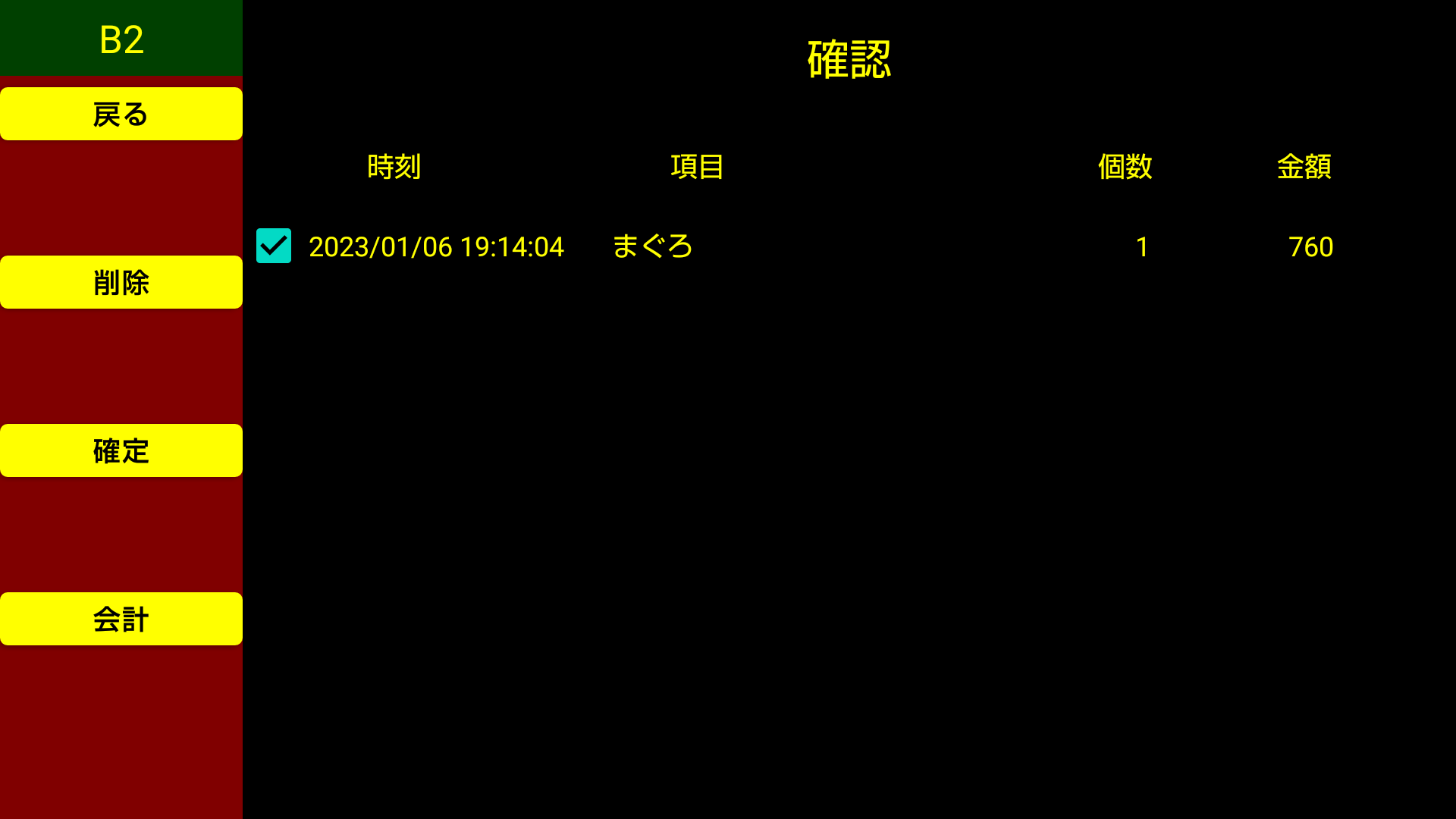

注文確認
order confirmation
仮確定された商品は注文確認画面にて確認頂き、注文の確定を行います
Confirm the provisionally confirmed products on the order confirmation screen and confirm the order

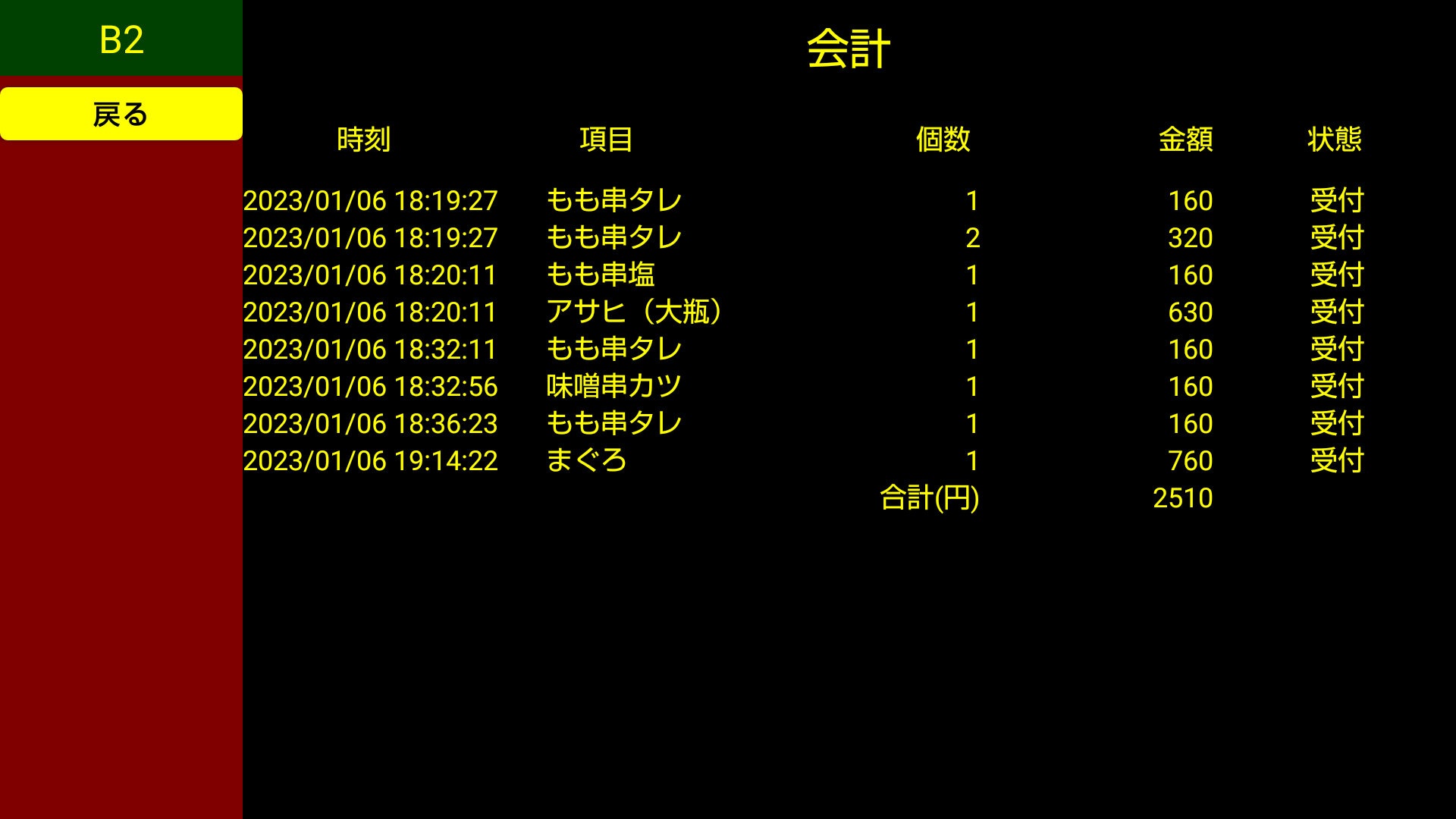

会計確認
accounting confirmation
注文済の商品を確認頂き、会計を確定します
Check the ordered products and confirm the payment

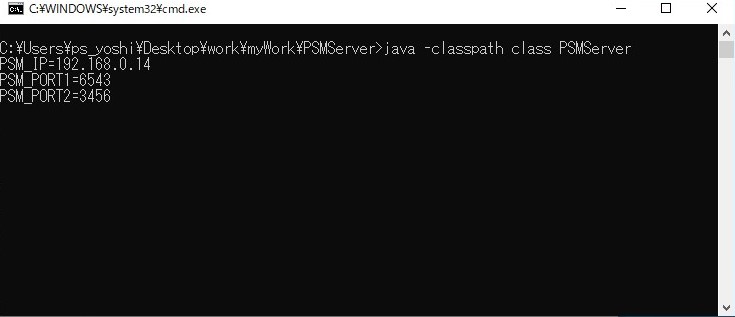

windows常駐アプリ
windows resident app
androidアプリからの注文の受付、及び「PSM」フォルダのダウンロードの対応を行う
Accept orders from the android app and download the "PSM" folder

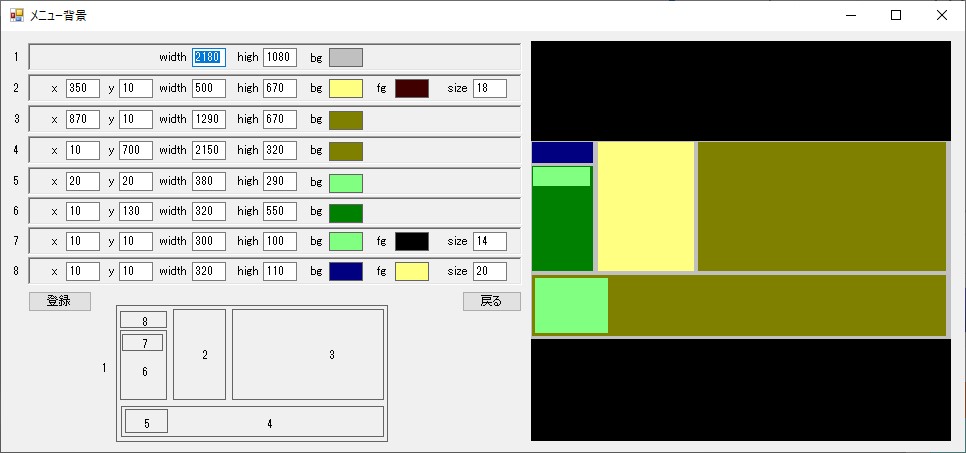

解像度設定
windows resident app
android端末の解像度及び背景色等を設定する
Set the resolution and background color of the android device

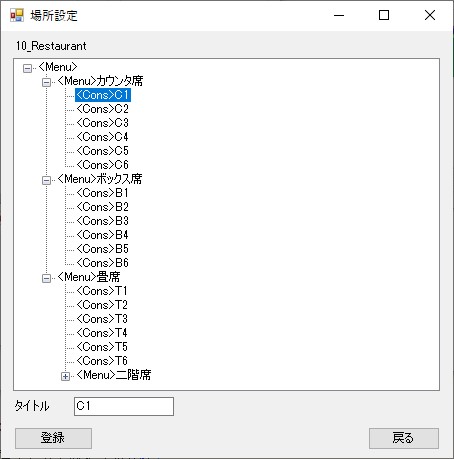

場所の設定
location settings
android端末で使用する場所(席等)を設定する
Set the location (seat, etc.) to use on the android device

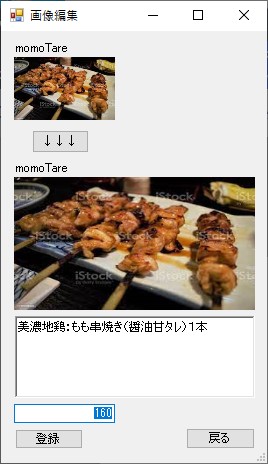

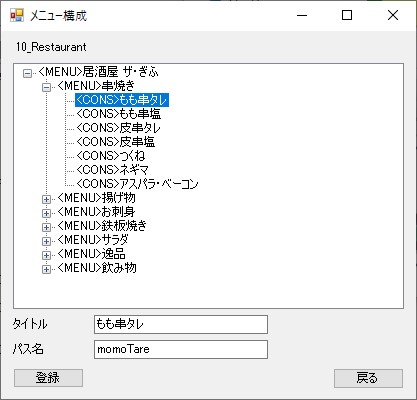

メニューの設定
Menu settings
android端末で使用するメニュー及び商品の詳細、価格、写真等を設定する
Set menus and product details, prices, photos, etc. used on android devices

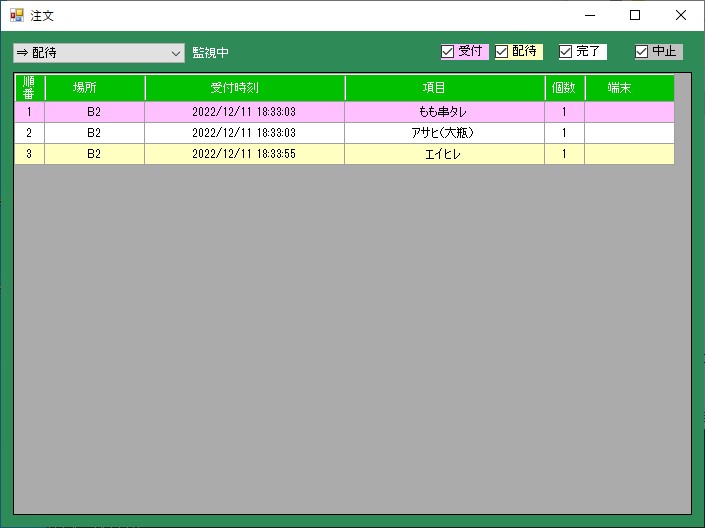

注文の確認
order confirmation
windowsアプリで注文状況の確認及び状態の変更が出来る
You can check the order status and change the status with the windows application

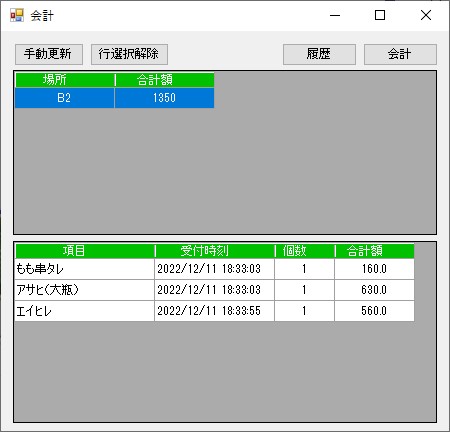

会計処理
accounting
windowsアプリで該当場所(席)の会計が出来る
Accounting for the corresponding place (seat) can be done with the windows application
Please contact the following for inquiries.
psmenu06@gmail.com (Responsible for:yoshikawa)
